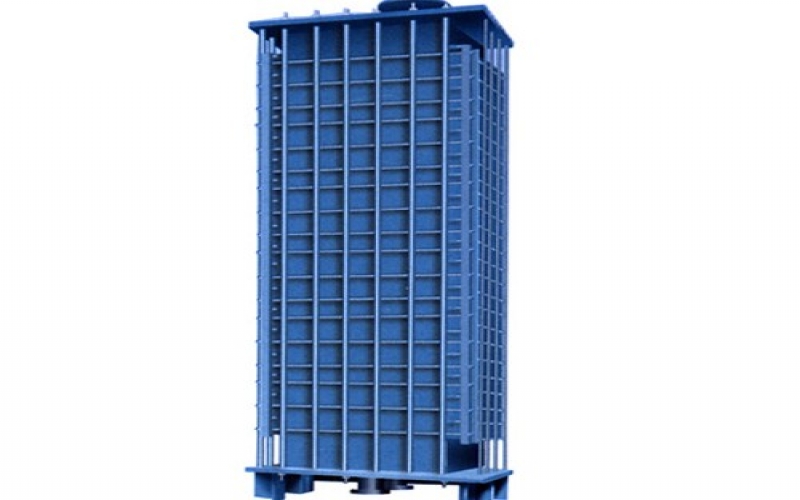

Rectangular block-hole graphite heat exchanger

Rectangular block-hole graphite heat exchanger

Structure and features: The rectangular block-type graphite heat exchanger is composed of a number of cubic and rectangular graphite heat exchange blocks, upper and lower graphite heads, metal cover plates and metal side covers on both sides, and the parts are sealed by gaskets.

Structure and features:

The rectangular block-type graphite heat exchanger is composed of a number of cubic and rectangular graphite heat exchange blocks, upper and lower graphite heads, metal cover plates and metal side covers on both sides, and the parts are sealed by gaskets. The upper and lower metal cover plates and the side cover plates are fastened together with the graphite block by long tie bolts. The utility model has the advantages of simple structure, reliable use, convenient maintenance and excellent thermal shock resistance and vibration resistance.

Technical characteristics:

Allowable temperature: -30-170 ° C

Allowable pressure: ≤0.3MPa
